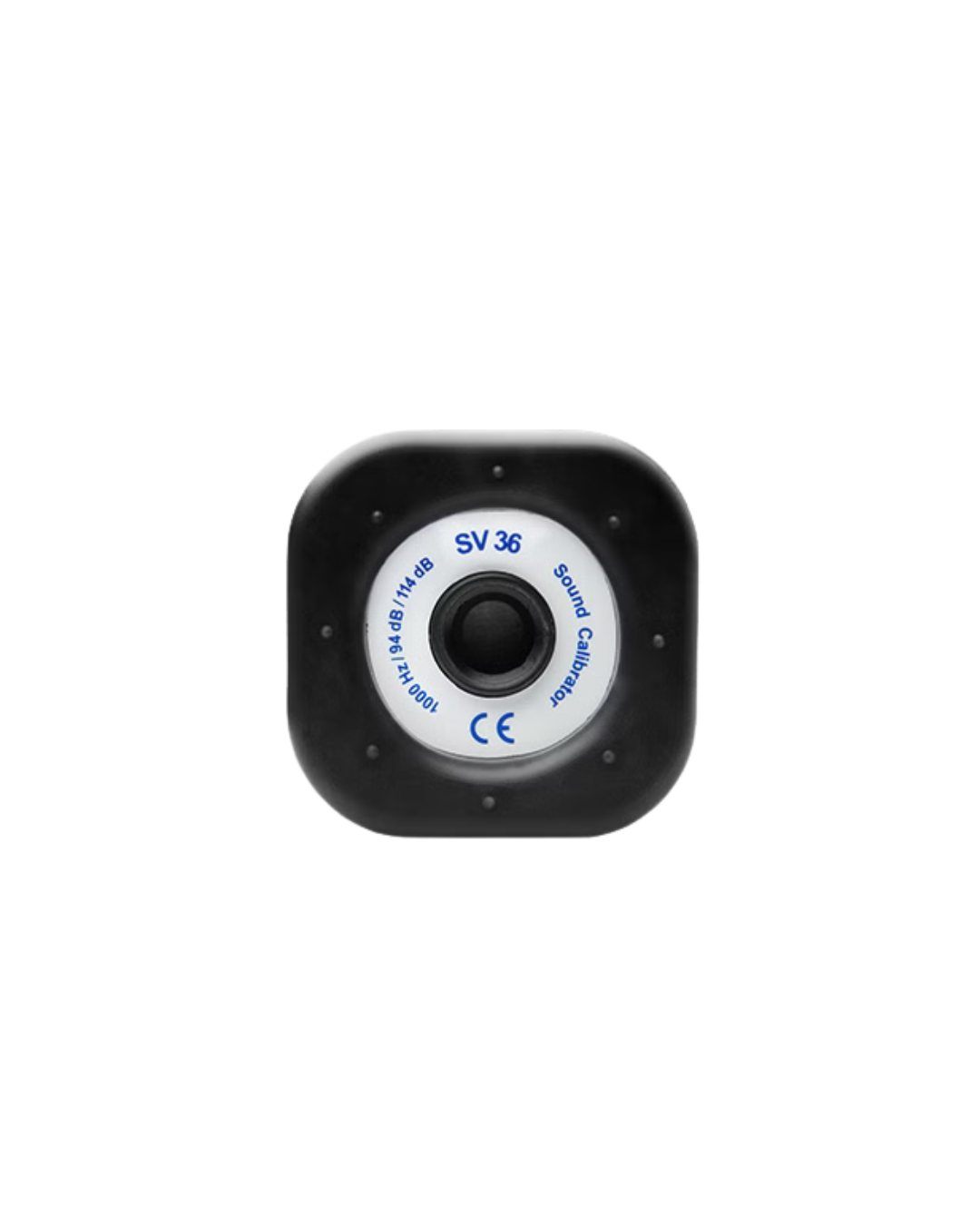

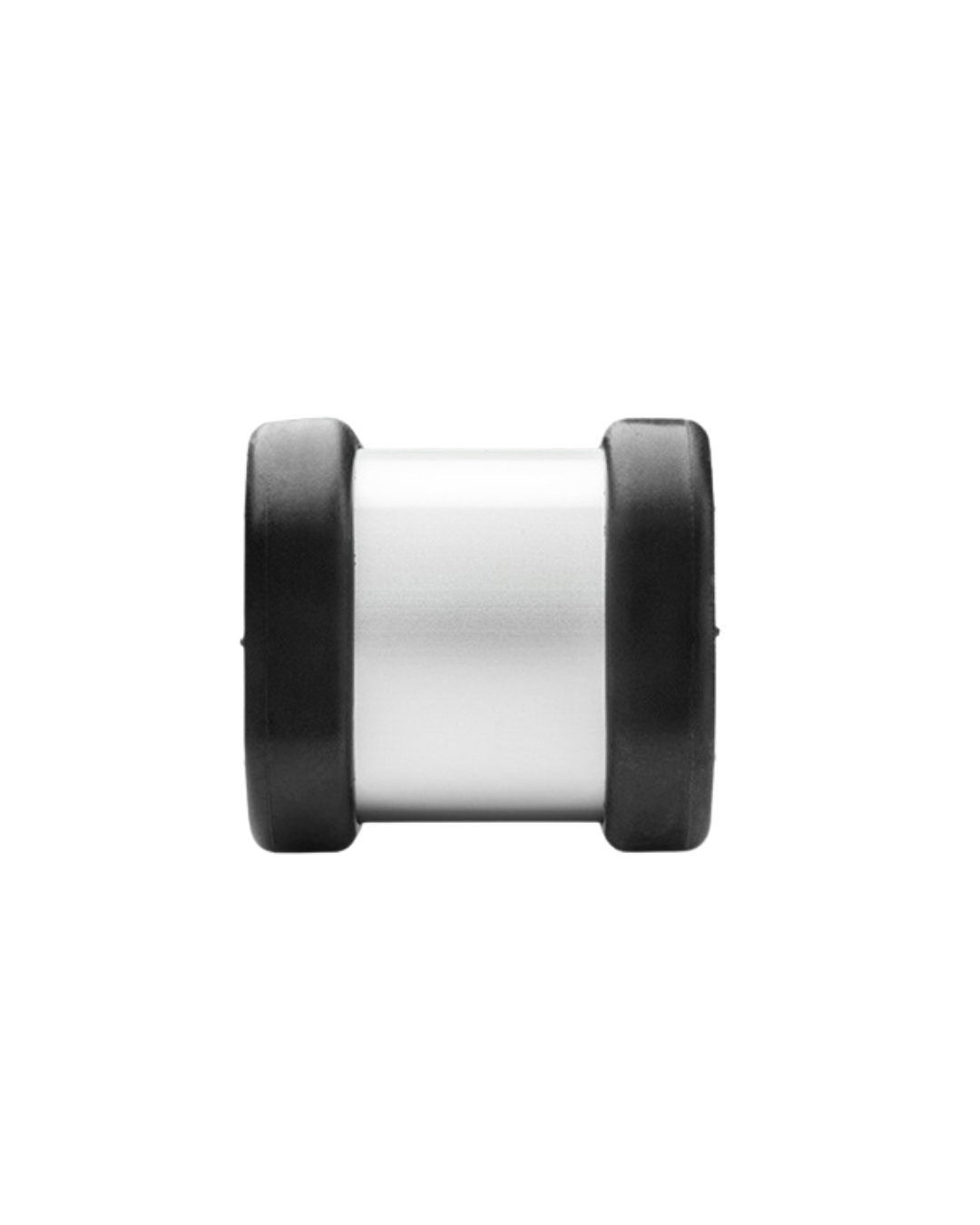

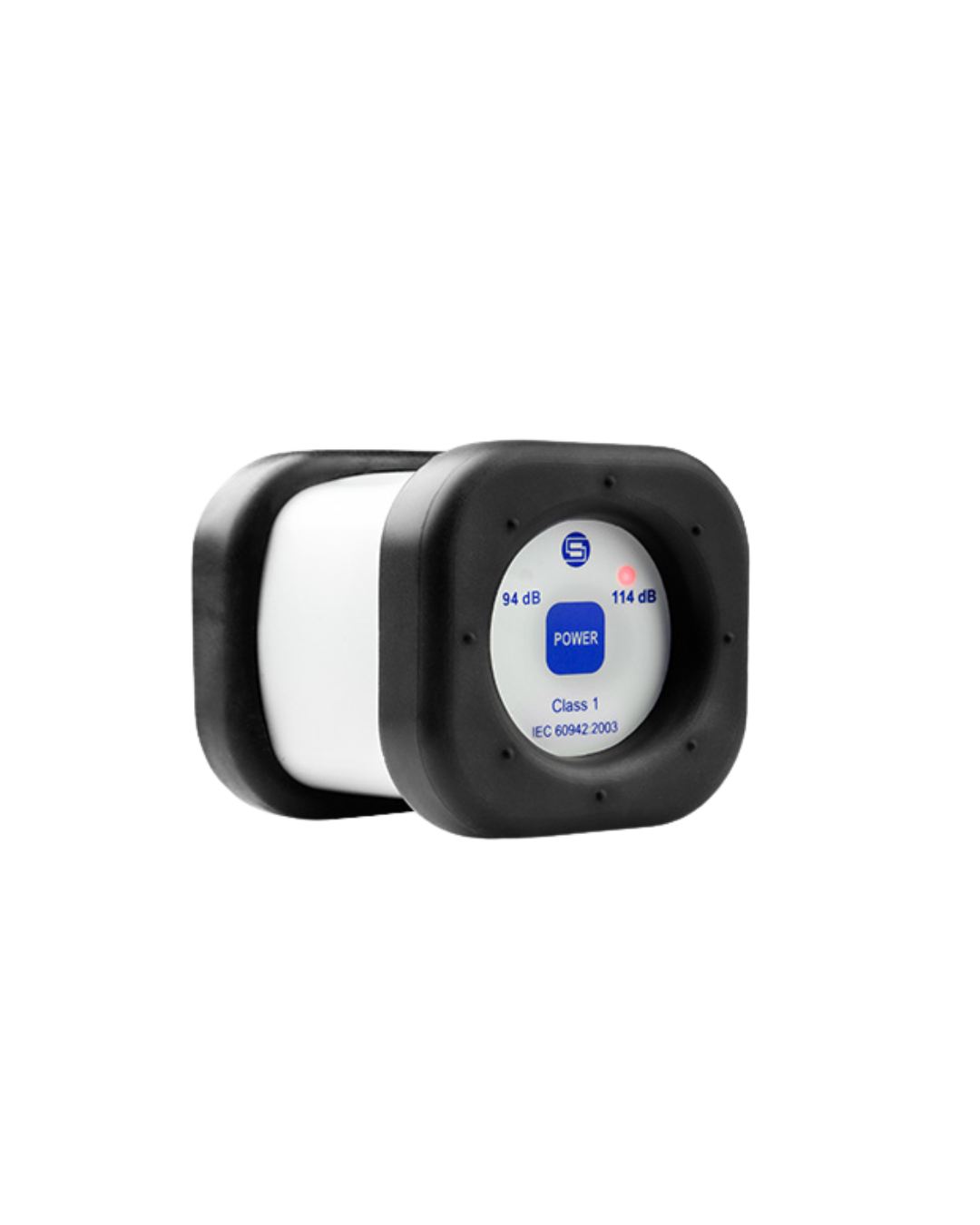

The SV 36 is a high-precision Class 1 acoustic calibrator designed for laboratory and field verification of sound level meters and microphones. Compliant with IEC 60942 standards, it delivers stable and accurate calibration signals at 94 dB and 114 dB, ensuring traceable reference levels for professional acoustic measurements.
Engineered for demanding measurement environments, the SV 36 offers low harmonic distortion, fast level stabilisation, and reliable performance across a wide range of environmental conditions. Its compatibility with 1/2” and 1/4” microphones makes it an ideal choice for calibration tasks where accuracy, repeatability, and compliance are critical.
| Sound measurements features | |
|---|---|
| Sound Pressure Level (SPL) | 114 dB or 94 dB |
| IEC 60942:2003 Accuracy | Class 1 |
| SPL Tolerance | ± 0.3 dB |
| Frequency Tolerance | ± 0.2 % |
| Total Harmonic Distortion (THD) | < 0.50 % for 94 dB < 0.75 % for 114 dB level |
| Temperature Range | -10 °C to +50 °C (related SPL error ≤ ±0.15 dB) |
| Atmospheric Pressure Range | 65 kPa to 108 kPa (related SPL error ≤ ±0.10 dB) |
| Humidity Range | 25 % to 90 % RH (related SPL error ≤ ±0.05 dB) |
| Effective Load Volume Sensitivity | 0.00027 dB / mm³ |
| Level Stabilisation Time |
SV 36: typically 10 s, max 25 s SV 33B: typically 15 s, max 30 s SV 34B: typically 15 s, max 30 s |
| Calibrated Microphones | 1/2” and 1/4” (with SA 30 adapter) |
| Storage Temperature Range | -25 °C ÷ +70 °C |
| CE Classification | EN 61010-1: 2010 EN 61326-1: 2013 IEC 60942: 2017 |
